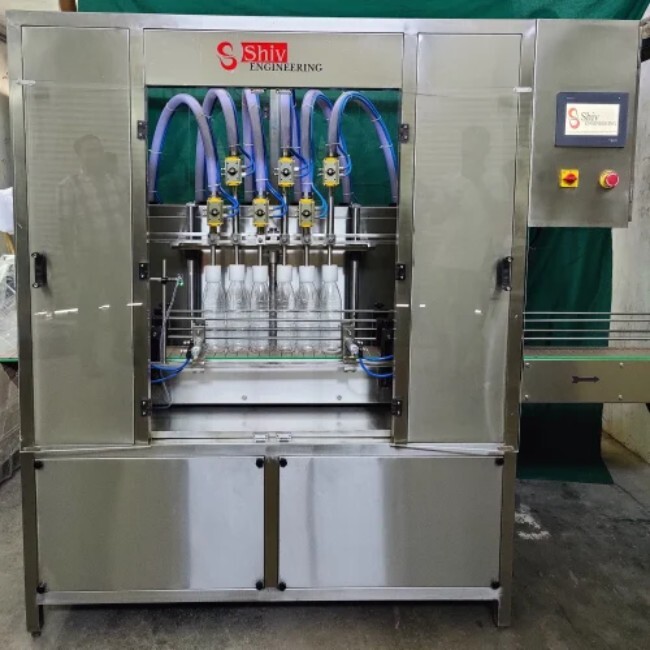

About Pharma Liquid Filling Machine

We are a well-known organization that manufactures and supplies finest quality Automatic Volumetric Filling  Machine. The range available by us is used in the beverage Industry for filling operations. All these machines help in filling juices, pesticides,pharmaceutical liquid, distilleries, breweries, Engine oil, lubes oil, mineral water and purified water in bottles made of PET plastics. In addition to this, the machines handle can be freely and conveniently turned to adjust the machine to fill various types of bottles.

1) Volumetric pneumatic: Piston filling technology.

2)  Fills Pharma Liquid, Pesticides, Oil, Water, Lubricants, Shampoo, Hand wash etc.

3) Special heat resistant cylinders and jacketed hopper for hot filling.

4)  Fills from 100ml to 1000ml and upto 10liters with maximum accuracy.

5) Special stirrer in the hopper.

6) No change parts and very less maintenance.

7) PLC control system.

8) Diving Nozzle  Mechanism avoids foaming and spillage.

9) Anti-drip system helps in keeping the filling area clean.

Features :

• Easy to operate
• Accurate dimension
• Maintenance

We are engaged in providing a wide range of Pharma Liquid Filling Machine to our esteem clients. Provided machine runs on three phase power and air compressor, while it works on volumetric principle with rotary valve type piston. It is made using stainless steel material and is enclosed in stainless steel elegantly smooth finish body. Pharma Liquid Filling Machine  can be availed in different specifications as per clients demand.

Technical Details
